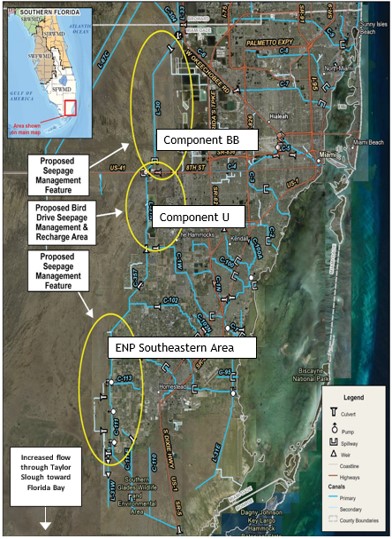

The Team reviewed existing data on seepage rates and wetland degradation in the study area to identify optimal locations for wall location and length. Three factors for determining length and location of seepage walls in Alt 13 were used:
- Existing data on seepage and transmissivities
- Minimize potential impacts to water supply and adjacent well fields
- Tie-in with existing structures to optimize seepage wall function and potentially improve efficiency of existing structures
Based on this analysis, two alternatives were developed.
ALT13A - (Yellow dashed line) - Construction of two semi-confining seepage walls (24-30 inches thick) in the L-30 levee crown and one semi-confining seepage wall (24-30 inches thick) in the L-31S levee crown. The north L-30 seepage wall extends 5.6 miles south from S-337, selected based on observed high transmissivities and seepage volumes in existing modeling information. The south L-30 seepage wall extends 3.8 miles north from S-356, selected based on observed high transmissivities and seepage volumes in existing modeling information with consideration to minimize potential impacts on the Miami-Dade Northwest wellfield. The L-31S seepage wall begins 0.2 miles south of the S-200 and extends 11.9 miles north, selected based on observed high transmissivities and seepage volumes in existing modeling information with consideration to minimize potential impacts on the Florida Keys Aqueduct Authority well-field while helping to improve efficiency of the S-332 B, C, and D pump stations and expand south from the existing 8.5 SMA seepage wall. The seepage walls will tie-in to existing water control structures where applicable. Additionally, operations changes in the L-30 canal and South Dade Conveyance System will be used to optimize reduction of groundwater seepage from WCA-3B and ENP.
ALT13B (Pink dashed line) - Construction of one semi-confining seepage wall (24-30 inches thick) in the L-30 levee crown and one semi-confining seepage wall (24-30 inches thick) in the L-31S levee crown. The L-30 seepage wall extends 3.8 miles north from S-356, selected based on observed higher transmissivities and seepage volumes in existing modeling information with consideration to minimize potential impacts on the Miami-Dade Northwest wellfield. The L-31 seepage wall begins 1.5 miles south of the S-332D and extends 7.3 miles north, selected based on observed high transmissivities and seepage volumes in existing modeling information with consideration to minimize potential impacts on the Florida Keys Aqueduct Authority well-field while helping to improve efficiency of the S-332 B, C, and D pump stations and promote flows toward Taylor Slough while leaving a “gap” for flow east between this new seepage wall and the existing 8.5 SMA seepage wall. The seepage walls will tie-in with existing water control structures where applicable. Additionally, operations changes in the L-30 canal and South Dade Conveyance System will be used to optimize reduction of groundwater seepage from WCA-3B and ENP.
The Final array will include evaluation of a Bird Drive Basin precipitation driven recharge feature and the benefits it provides for meeting the Southern Everglades Project objective.
